How does a low pass filter work

How does a low pass filter work

A low-pass filter allows for easy passage of low-frequency signals from source to load, and difficult passage of high-frequency signals. Inductive low-pass filters insert an inductor in series with the load; capacitive low-pass filters insert a resistor in series and a capacitor in parallel with the load.

When would you use a low-pass filter?

A low-pass filter can be used very effectively to mimic the sensation that one signal is further away from the listener than another (unfiltered) signal. This technique can be used very quickly, and easily to establish spatial contrast between two signals, especially if they're separated in the stereo field.

How does low-pass filter reduce noise?

A low pass filter is placed on the signal wires between a signal and an electronic device such as a DAQ module. It stops frequencies greater than the cut off frequency from entering the DAQ module analog or digital inputs.

How do high and low pass filters work?

An HPF (high pass filter) is one kind of circuit which permits the high frequency and blocks low frequency for flowing through it. In the same way, an LPF (low pass filter) is one kind of circuit which permits the low-frequency and blocks high-frequency for flowing through it.

Is a low pass filter for AC or DC?

Low-pass filters are filter circuits that pass DC and low-frequency signals and cut high-frequency signals. They are the most widely used filter circuits and are mainly used to cut high-frequency noise. In audio, they are also used to cut treble/mid-range sound components of bass speakers.

How do you set a low pass filter?

As a general rule, the Low-Pass Filter should be set at a value approximately equal to (or below) 70% of your main speaker's lowest frequency response. For example, your speaker's frequency response goes down to 43Hz. 70% of 43Hz equals 30.1, so you should set the subwoofer's low pass filter to 30Hz.

What is difference between low pass and high pass filters?

Low pass filter: Low pass filter is the type of frequency domain filter that is used for smoothing the image. It attenuates the high frequency components and preserves the low frequency components. High pass filter: High pass filter is the type of frequency domain filter that is used for sharpening the image.

How do I know if my filter is high pass or low pass?

If a filter passes low frequencies and blocks high frequencies, it is called a low-pass filter. If it blocks low frequencies and passes high frequencies, it is a high-pass filter.

Which capacitor is used in low pass filter?

To build a low pass filter, the components we will use are a function generator, a 10nF ceramic capacitor, and a 1KΩ resistor.

Is a capacitor a low pass filter?

A capacitor can be used as part of a high pass, low pass, or band pass filter, depending on how it's connected to other parts.

How do you filter out high-frequency noise?

A low-pass filter is a common techqnique for removing high-frequency noise in a signal.

What does low-pass do on a subwoofer?

Low Pass: This controls the crossover point. The crossover is the frequency point where the subwoofer will take over from the other speakers in your system. We always recommend starting with the crossover (Low Pass knob) set to 80Hz, but crossover points can be a personal preference.

Why do high pass filters work?

A high-pass filter (HPF) “passes” the high-frequencies above their cutoff frequency while progressively attenuating frequencies below the cut-off frequency. In other words, high-pass filters remove low-frequency content from an audio signal below a defined cut-off point.

What is active low pass filter?

Active filters such as an active low pass filter, are filter circuits that use an operational amplifier (op-amp) as the their main amplifying device along with some resistors and capacitors to provide a filter like performance at low frequencies.

What is low pass filter slope?

Low pass filter. A filter which attenuates frequencies above its cutoff frequency (which is the point where the signal is 3 dB down). The slope of the filter is the rate of attenuation, i.e. 6, 12 or 24 dB per octave.

Which low pass filter is best?

Swastik Electronics

  • Signal Low Pass Filter.
  • 2-3 Ghz Nel Tech Low Pass Filter, For Measurement Purpose. ...
  • Constant K Type Low Pass Filters (Passive Type) ...
  • First Order Low Pass High Pass Filter. ...
  • RC Circuit (Low Pass & High Pass Filters)

Does a low pass filter remove low frequency?

What is a Lowpass Filter? A lowpass filter removes frequencies above a defined cutoff frequency, while allowing those below to pass. This enables you to attenuate (lower the level of) high frequencies.

Why RC circuit is low pass filter?

If the applied voltage is of very low frequency, the reactance of C will be very high compared with R, and C may be considered an open circuit. Therefore, at low frequencies the input voltage Vin will appear virtually unattenuated at the output. Hence, we have the name low-pass filter.

How do you get a punchy bass on a subwoofer?

You're gonna want to tune your system using an EQ. And an ITA RTA. The vehicle cabinet is likely

Where should I set my LPF on my amp?

With only one amp receiving signal from your head unit, play your favorite type of music at about 75% volume with the LPF filter on your amp set as high as it will go. Slowly turn the dial from high to low until you stop hearing all the high frequencies through your subwoofers.

15 How does a low pass filter work Images

lowpassfiltercircuitforsubwooferpng 1225774 con imgenes

lowpassfiltercircuitforsubwooferpng 1225774 con imgenes

  46

46

How Does A Whole House Water Filter Work  Water purification system

How Does A Whole House Water Filter Work Water purification system

the words sample  rc low  pass filter design for pwm result on a purple

the words sample rc low pass filter design for pwm result on a purple

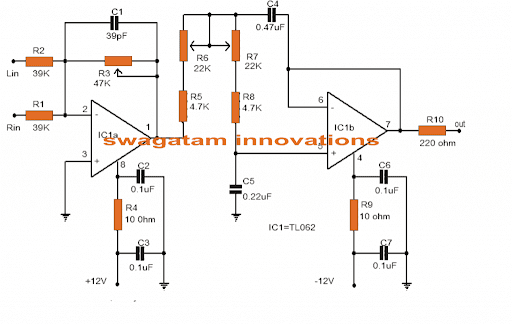

Low pass filters using IC 4558TL072 TL062 LF353  Electronic Circuit
